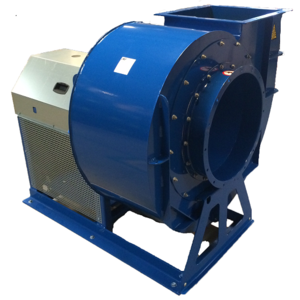

JK-30K

The indirect drive centrifugal fan types JK-30K - JK-75K are designed for material handling.

Equipped with self-cleaning impellers with backward-inclined blades and aerodynamic intake. The impellers are statically and dynamically balanced.

The pulleys are shaft-mounted with taperlock bushing, allowing easy replacement for changed fan speed.

Max. internal operating temperature: 60°C

With cooling wings: Up to 200°C

Number of blades are reduced by 2 for paper impeller.

Available with stainless steel inlet and explosion-proof (Eex) motor.

The inlet (D) is supplied with flange as standard.

If the fan is mounted in an acoustic booth, it is supplied with smooth inlet.

Belt drive is anti-static.

Product Position
Name: File type: Size:
jk30k_5-5kw_ln.dwg .dwg 330.45 kb
Product Position
Name: File type: Size:
jk30k_5-5kw_lno.dwg .dwg 354.51 kb
Product Position
Name: File type: Size:
jk30k_5-5kw_lnv.dwg .dwg 346.48 kb
Product Position
Name: File type: Size:
jk30k_5-5kw_lo.dwg .dwg 339.74 kb
Product Position
Name: File type: Size:
jk30k_5-5kw_lsv.dwg .dwg 337.71 kb
Product Position
Name: File type: Size:
jk30k_5-5kw_lv.dwg .dwg 326.12 kb
Product Position
Name: File type: Size:
jk30k_5-5kw_rn.dwg .dwg 350.52 kb
Product Position
Name: File type: Size:
jk30k_5-5kw_rno.dwg .dwg 369.05 kb
Product Position
Name: File type: Size:
jk30k_5-5kw_rnv.dwg .dwg 362.45 kb
Product Position
Name: File type: Size:
jk30k_5-5kw_ro.dwg .dwg 352.13 kb
Product Position
Name: File type: Size:
jk30k_5-5kw_rso.dwg .dwg 364.57 kb
Product Position
Name: File type: Size:
jk30k_5-5kw_rv.dwg .dwg 351.96 kb

Product Position
Name: File type: Size:
jk30k_5-5kw_ln.stp .stp 3.33 mb
Product Position
Name: File type: Size:
jk30k_5-5kw_lno.stp .stp 2.92 mb
Product Position
Name: File type: Size:
jk30k_5-5kw_lnv.stp .stp 3.01 mb
Product Position
Name: File type: Size:
jk30k_5-5kw_lo.stp .stp 3.33 mb
Product Position
Name: File type: Size:
jk30k_5-5kw_lsv.stp .stp 3.47 mb
Product Position
Name: File type: Size:
jk30k_5-5kw_lv.stp .stp 3.14 mb
Product Position
Name: File type: Size:
jk30k_5-5kw_rn.stp .stp 3.69 mb
Product Position
Name: File type: Size:
jk30k_5-5kw_rno.stp .stp 3.27 mb
Product Position
Name: File type: Size:
jk30k_5-5kw_rnv.stp .stp 3.23 mb
Product Position
Name: File type: Size:
jk30k_5-5kw_ro.stp .stp 3.5 mb
Product Position
Name: File type: Size:
jk30k_5-5kw_rso.stp .stp 3.78 mb

Name: File type: Size:
mont-jk30k.pdf .pdf 5.65 mb
Name: File type: Size:
D100058_Fitting_and_service_instructions_for_taper_lock_bushings_pulleys_and_drive_belts.pdf .pdf 2.79 mb
Fan systems brochure
JK-30K data sheet

Read all about JK-30K

Fan systems brochure
JK-30K data sheet

Read all about JK-30K

Product Position
Name: File type: Size:
jk30k_5-5kw_ln.dwg .dwg 330.45 kb
Product Position
Name: File type: Size:
jk30k_5-5kw_lno.dwg .dwg 354.51 kb
Product Position
Name: File type: Size:
jk30k_5-5kw_lnv.dwg .dwg 346.48 kb
Product Position
Name: File type: Size:
jk30k_5-5kw_lo.dwg .dwg 339.74 kb
Product Position
Name: File type: Size:
jk30k_5-5kw_lsv.dwg .dwg 337.71 kb
Product Position
Name: File type: Size:
jk30k_5-5kw_lv.dwg .dwg 326.12 kb
Product Position
Name: File type: Size:
jk30k_5-5kw_rn.dwg .dwg 350.52 kb
Product Position
Name: File type: Size:
jk30k_5-5kw_rno.dwg .dwg 369.05 kb
Product Position
Name: File type: Size:
jk30k_5-5kw_rnv.dwg .dwg 362.45 kb
Product Position
Name: File type: Size:
jk30k_5-5kw_ro.dwg .dwg 352.13 kb
Product Position
Name: File type: Size:
jk30k_5-5kw_rso.dwg .dwg 364.57 kb
Product Position
Name: File type: Size:
jk30k_5-5kw_rv.dwg .dwg 351.96 kb
Product Position
Name: File type: Size:
jk30k_5-5kw_ln.stp .stp 3.33 mb
Product Position
Name: File type: Size:
jk30k_5-5kw_lno.stp .stp 2.92 mb
Product Position
Name: File type: Size:
jk30k_5-5kw_lnv.stp .stp 3.01 mb
Product Position
Name: File type: Size:
jk30k_5-5kw_lo.stp .stp 3.33 mb
Product Position
Name: File type: Size:
jk30k_5-5kw_lsv.stp .stp 3.47 mb
Product Position
Name: File type: Size:
jk30k_5-5kw_lv.stp .stp 3.14 mb
Product Position
Name: File type: Size:
jk30k_5-5kw_rn.stp .stp 3.69 mb
Product Position
Name: File type: Size:
jk30k_5-5kw_rno.stp .stp 3.27 mb
Product Position
Name: File type: Size:
jk30k_5-5kw_rnv.stp .stp 3.23 mb
Product Position
Name: File type: Size:
jk30k_5-5kw_ro.stp .stp 3.5 mb
Product Position
Name: File type: Size:
jk30k_5-5kw_rso.stp .stp 3.78 mb
Name: File type: Size:
mont-jk30k.pdf .pdf 5.65 mb
Name: File type: Size:
D100058_Fitting_and_service_instructions_for_taper_lock_bushings_pulleys_and_drive_belts.pdf .pdf 2.79 mb

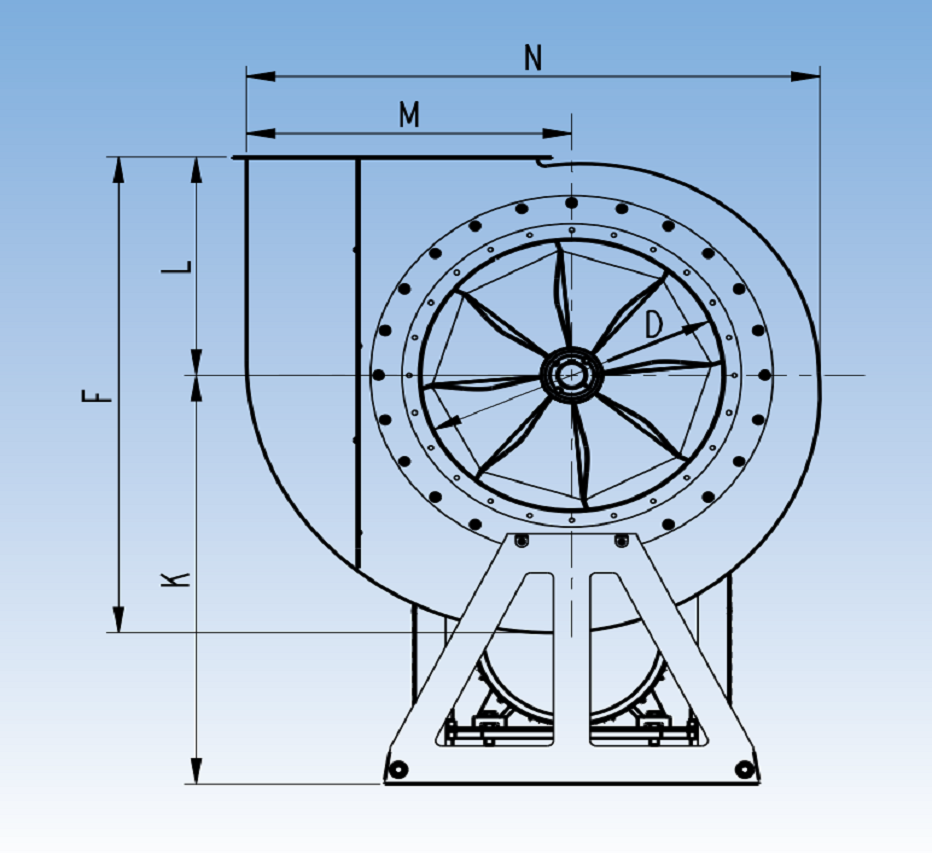

JK-75K Fan Dimension B

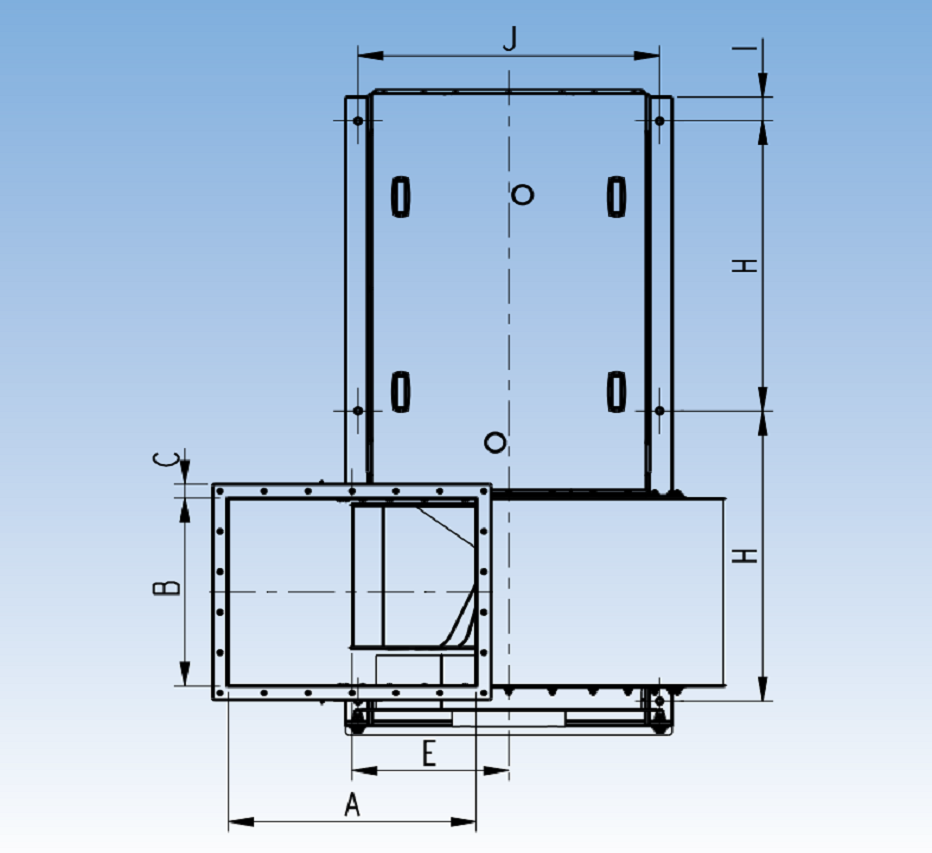

JK-75K Fan Dimension A
JK-75K Fan Dimension C
